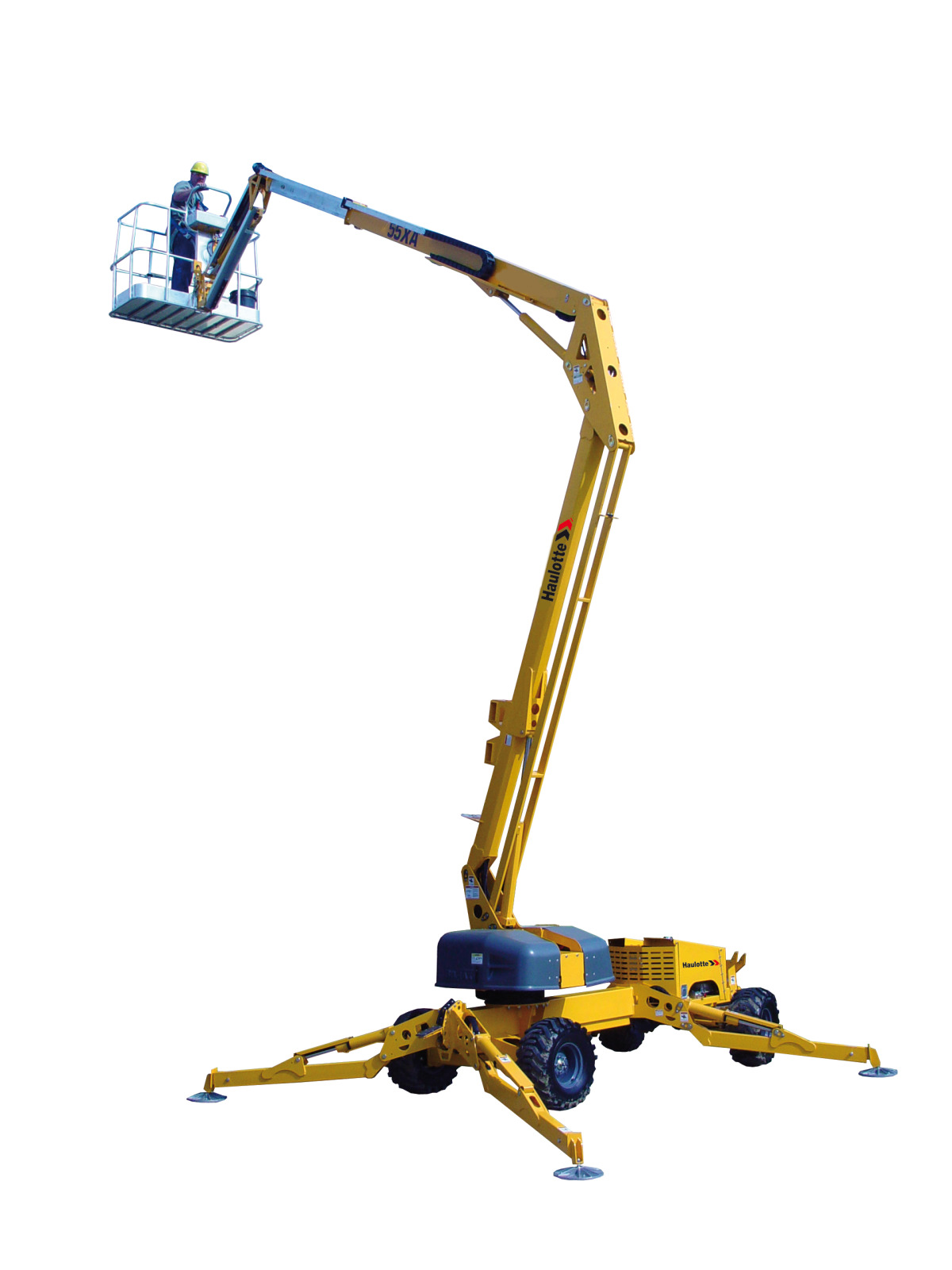

Lightweight Self-Propelled BoomsHLA19 PX

  • Lightweight Self-Propelled Booms
  • Dual energy
  • Rough terrain
  • Indoor and outdoor use
  • Logistic / Retail / Industry
  • Landscaping
  • Maintenance & restoration
  • Sporting & other events
  • Access like never before
  • Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
  • High performance 4WD and light weight provide access to places larger and heavier machines cannot go
  • Easily transported on a trailer with no commercial driver’s license requirement
  • Dual power source (DC / Gas) allows for indoor/outdoor use
  • Optimum performance
  • 4,000 Watt generator
  • Air / water lines to platform
  • 110V GFI protected power to the platform

Working height 18.67 m
Platform height 16.84 m
Horizontal outreach (from centerline) 10.19 m
Horizontal outreach (from edge of footpad) 8.33 m
Up and over height 7.04 m
Lift capacity 227 kg
Length - stowed 6.45 m
Width stowed 1.72 m
Height stowed 2.06 m
Wheelbase 3.08 m
Ground clearance 25 cm
Platform size 1.52 x 0.76 m
Outrigger footprint 4.24 x 3.89 m
Turntable rotation 350° non-continuous
Jib - length 1.3 m
Jib - Vertical motion 150° (+70 / -80)
Drive speed 7.6 km/h
Gradeability 45 %
Turning radius - inside (2WS) 3.45 m
Turning radius - inside (4WS) 2.03 m
Tyre size 26 x 12 Bar lug
Batteries 4 x 6V 245 Amp-hr
Engine 31 hp gas Kubota
Weight 2721 kg
  • Hydraulic outriggers
  • Automatic leveling system (leveling capability 12.5°)
  • Self-leveling platform
  • Air and water lines to platform
  • 110V GFI protected outlet to platform and base
  • 4,000 W generator
  • Hour meter
  • Battery condition indicator
  • Dual power system
  • Easy to use controls with logically positioned buttons
  • Tilt alarm / sensor
  • Spring applied hydraulic released brakes
  • Inboard 25 amp charger
  • Bar lug tires
  • 4 wheel steering (standard on HLA19PX)
  • Platform rotator (manual)
  • Flashing beacon
  • Flourescent tube caddy
  • Tool tray
  • Turf tires
  • Diesel - 21.6 Hp Kubota
  • Dual fuel - 32.5 Hp gas / liquid propane Kubota
  • Non-marking bar lug tires
