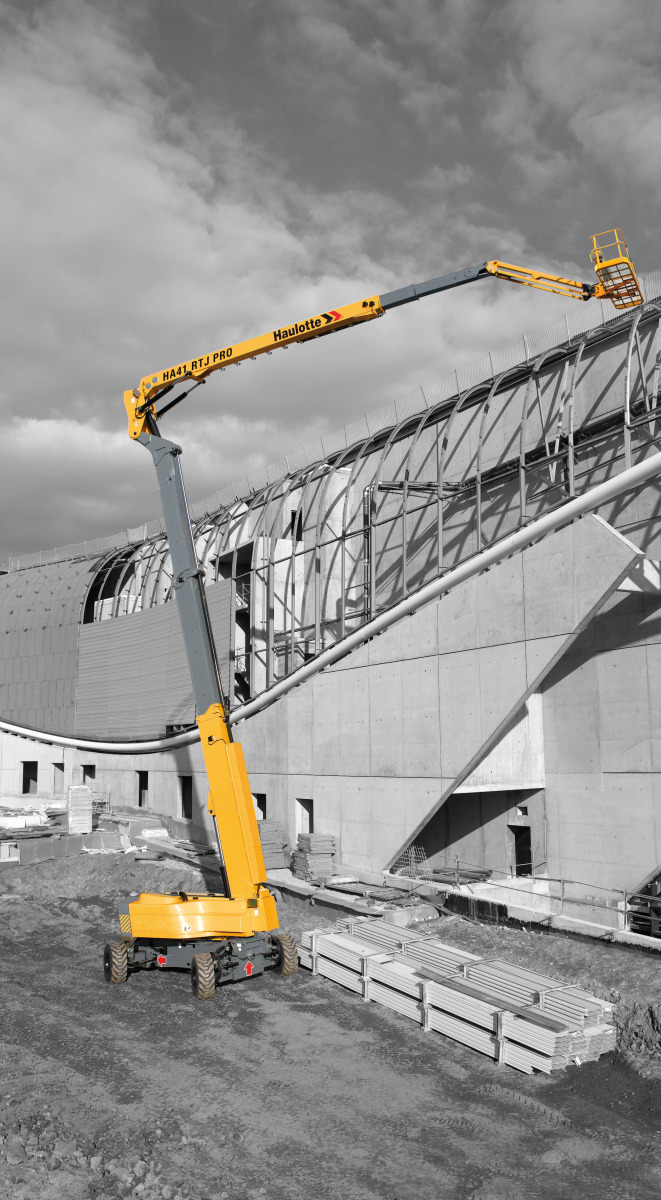

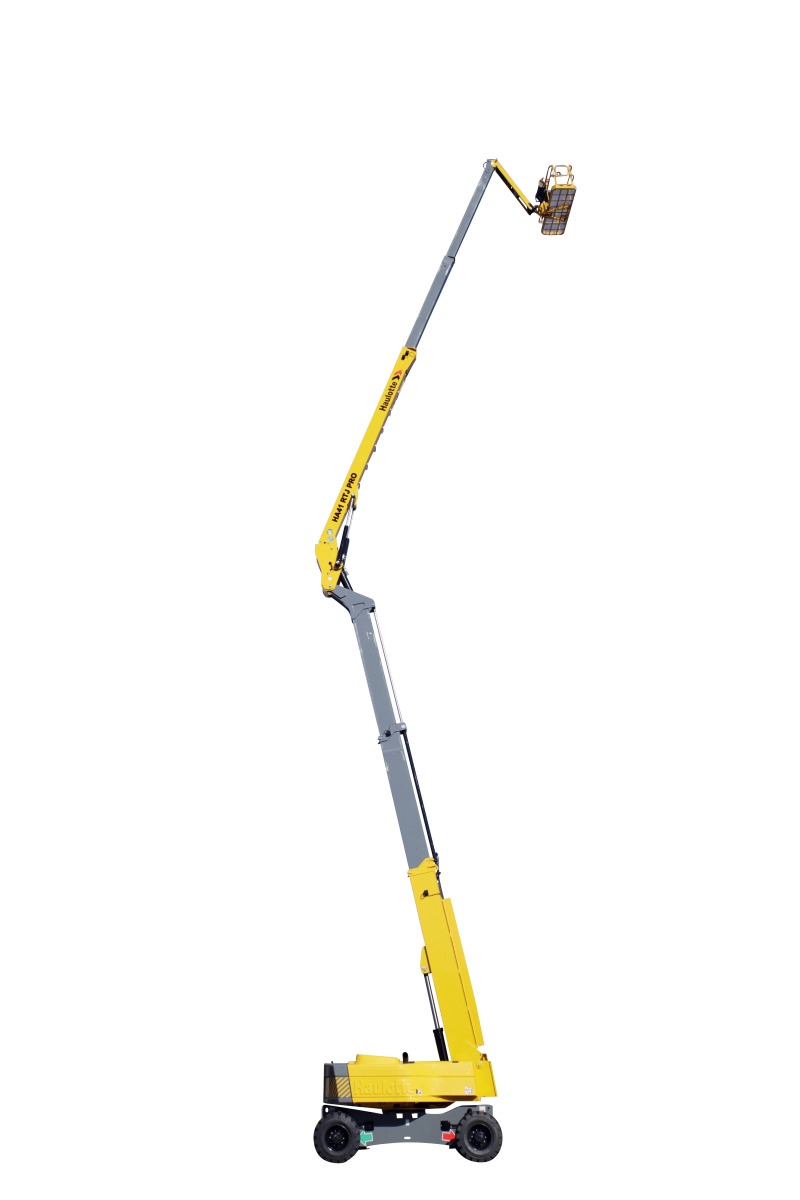

Diesel Articulating BoomsHA41 RTJ PRO

  • Diesel Articulating Booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Maintenance & restoration
  • Landscaping
  • Sporting & other events
  • Performance & ease of use
  • Outstanding rough terrain driving features: 4 wheel drive and steer, oscillating axle
  • Up to 4 simultaneous, proportional movements
  • The smallest turning radius on the market
  • Continuous outreach control
  • Optimized service ability
  • Exclusive modular basket easy and quick to repair
  • Easy access to all components
  • Self-diagnosis tool integrated on the lower control box
  • Best safety feeling
  • Haulotte Activ'Shield Bar 2.0

Working height 41.5 m
Platform height 39.5 m
Horizontal outreach 20.1 m
Up and over clearance 17.5 m
Lift capacity 230 kg (2 pers.)
Platform size 2.44 x 0.91 m
Length - stowed 13.1 m
Width 2.53 m
Height - stowed 2.99 m
Vertical jib rotation 140° (+ 70° / - 70°)
Platform rotation 180° (+ 90° / - 90°)
Turntable rotation 360° continuous
Tailswing 3.88 m
Wheelbase 3.5 m
Ground clearance 38 cm
Tilt 4 °
Drive speed 0.5 - 5 km/h
Gradeability 40 %
Tyres - foam-filled 445 / 65 - 22.5
Power source Deutz, 55 kW, Turbo (Stage 5 in EU) - Perkins, 62.5 kW, Turbo (Stage 3A in NRC)
Weight 23 900 kg
Storage / transport length 11 m
Width - with extended axles 3.3 m
Storage / transport height 3.73 m
Below ground reach 1.5 m
Turning radius - outside axle extended 5.74 m
Maximum wind speed rating 45 km/h
  • Haulotte Activ'Shield Bar 2.0
  • Universal telematics plug
  • 4 wheel drive and steer
  • Front oscillating axle increasing stability on uneven ground
  • 2 extendable axles
  • Proportional controls enhancing comfort and safety
  • 4 simultaneous mouvements for highest productivity
  • Differential wheel lock increasing rough terrain capacity
  • Upper control box protection cover and tool tray in plastic ultra-solid
  • Common modular large platform with drop bar entry gate
  • Basket compensation ± 10°
  • Power to platform 110 V / 220 V (female plug in the basket)
  • Enhanced Swing out engine tray for ease of maintenance
  • Sound and light alarm for tilt and load
  • Driving beacon
  • Travel alarm
  • Electric pump system and emergency descent controls upper control box
  • 12 V battery
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper control box)
  • Towing hooks
  • Hydrostatic transmission
  • Air line to platform
  • Lateral swing door gate
  • On-board hydraulic 3.5 kW generator
  • Biodegradable hydraulic oil
  • Hydraulic oil cooler
  • Cap with key for diesel tank
  • Hydraulic oil in tank and circuit for warm countries
  • Cold weather kit
  • Pipe cradle pack
  • Glazier Pack
  • Automatic Overspeed Air Shutdown Valve (electric one-way valve, flame arrestor, spark arrestor)
  • 55 W Platform working light
