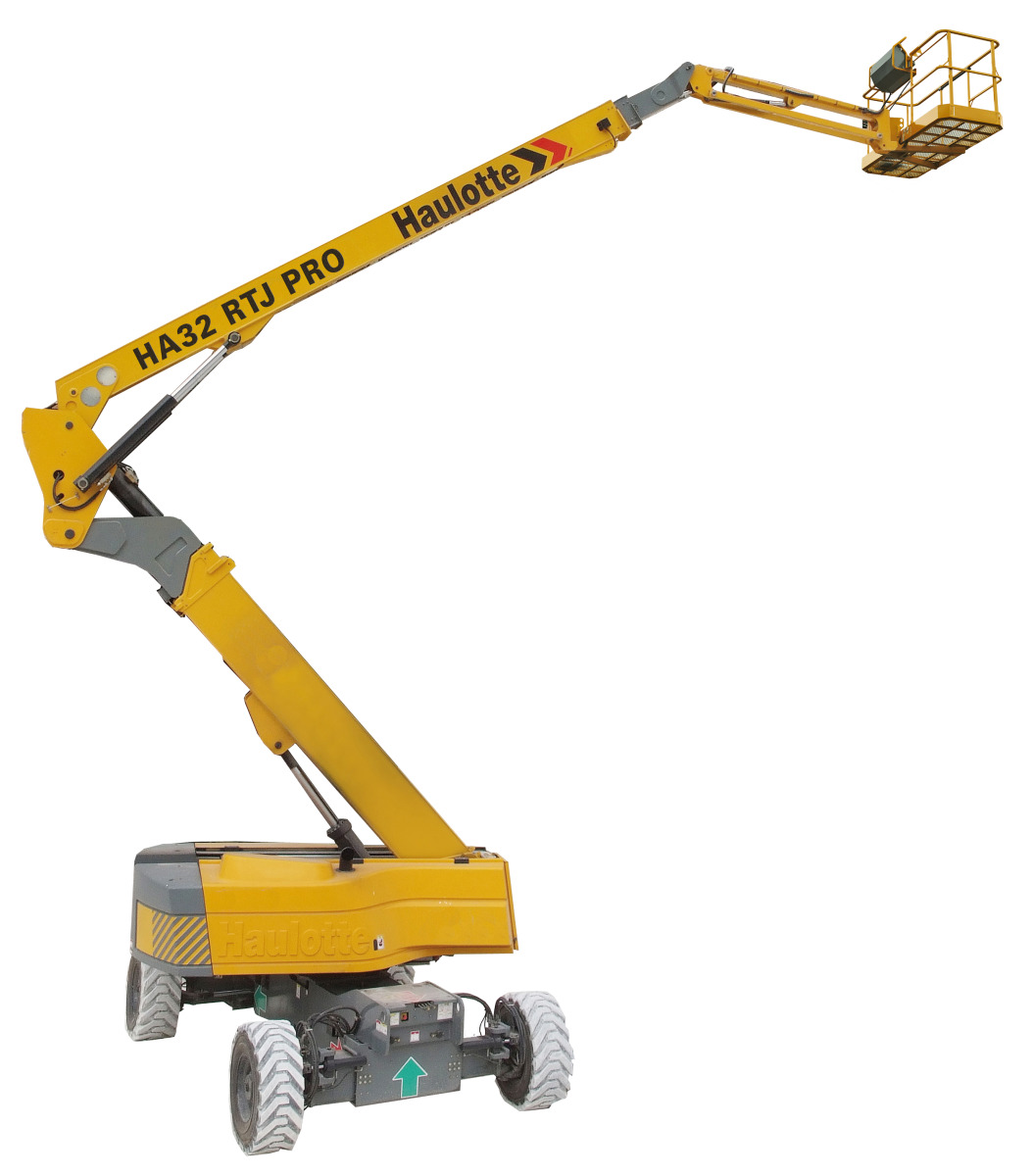

Diesel Articulating BoomsHA32 RTJ PRO

  • Diesel Articulating Booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Maintenance & restoration
  • Landscaping
  • Sporting & other events
  • Performance & ease of use
  • Unrestricted working envelope with a max. 21.60 m horizontal outreach
  • Unmatched versatility
  • Outstanding rough terrain driving features: 4 wheel drive and steer, oscillating axle
  • Excellent time to full height of 95 sec. thanks to fully proportional controls and simultaneous boom functions
  • Optimized maintenance
  • Exclusive modular basket quick and easy to repair
  • Easy access to all components
  • Self-diagnosis tool integrated on the lower control box
  • Best safety feeling
  • Haulotte Activ'Shield Bar 2.0
  • Most rigid boom

Working height 31.8 m
Platform height 29.8 m
Horizontal outreach 21.6 m
Up and over clearance 11.35 m
Lift capacity 250 kg (2 pers.)
Platform size 2.44 x 0.91 m
Length - stowed 11.7 m
Width 2.53 m
Height - stowed 2.8 m
Vertical jib rotation 140° (+ 70 / - 70)
Platform rotation 180° (+ 90 / - 90)
Turntable rotation 360° continuous
Tailswing 3.3 m
Wheelbase 3.5 m
Ground clearance 38 cm
Tilt 5 °
Drive speed 0.5 - 5 km/h
Gradeability 40 %
Tyres - foam-filled 445 / 65-22.5
Power source Deutz, 55 kW, Turbo (Stage 5 in EU) ; Perkins, 62.5 kW, Turbo (Stage 3A in NRC)
Weight 20 100 kg
Storage / transport length 8.9 m
Width - with extended axles 3.3 m
Storage / transport height 3.75 m
Below ground reach 5.5 m
Turning radius - outside axle extended 5.74 m
Maximum wind speed rating 60 km/h
  • Haulotte Activ'Shield Bar 2.0
  • Universal telematics plug
  • 4 wheel drive and steer
  • Front oscillating axle increasing stability on uneven ground
  • 2 extendable axles
  • Proportional controls enhancing comfort and safety
  • 4 simultaneous mouvements for highest productivity
  • Differential wheel lock increasing rough terrain capacity
  • Upper control box protection cover and tool tray in plastic ultra-solid material
  • Modular large platform with drop bar entry gate
  • Power to platform 110 V / 220 V (Female plug in the basket)
  • Basket compensation ± 10°
  • Enhanced Swing out engine tray for ease of maintenance
  • Sound and light alarm for tilt and load
  • Driving beacon
  • Travel alarm
  • Hourmeter
  • Electric pump system and emergency descent
  • 12 V battery / electrical control system
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper control box)
  • Towing hooks
  • Air line to platform
  • Lateral swing door gate
  • On-board hydraulic generator 3.5 kW
  • Biodegradable hydraulic oil
  • Hydraulic oil cooler
  • Hydraulic oil in tank and circuit for warm countries
  • Cap with key for diesel tank
  • Cold weather kit
  • Pipe cradle pack
  • Glazier Pack
  • Automatic Overspeed Air Shutdown Valve (electric one-way valve, flame arrestor, spark arrestor)
  • 55 W Platform working light
