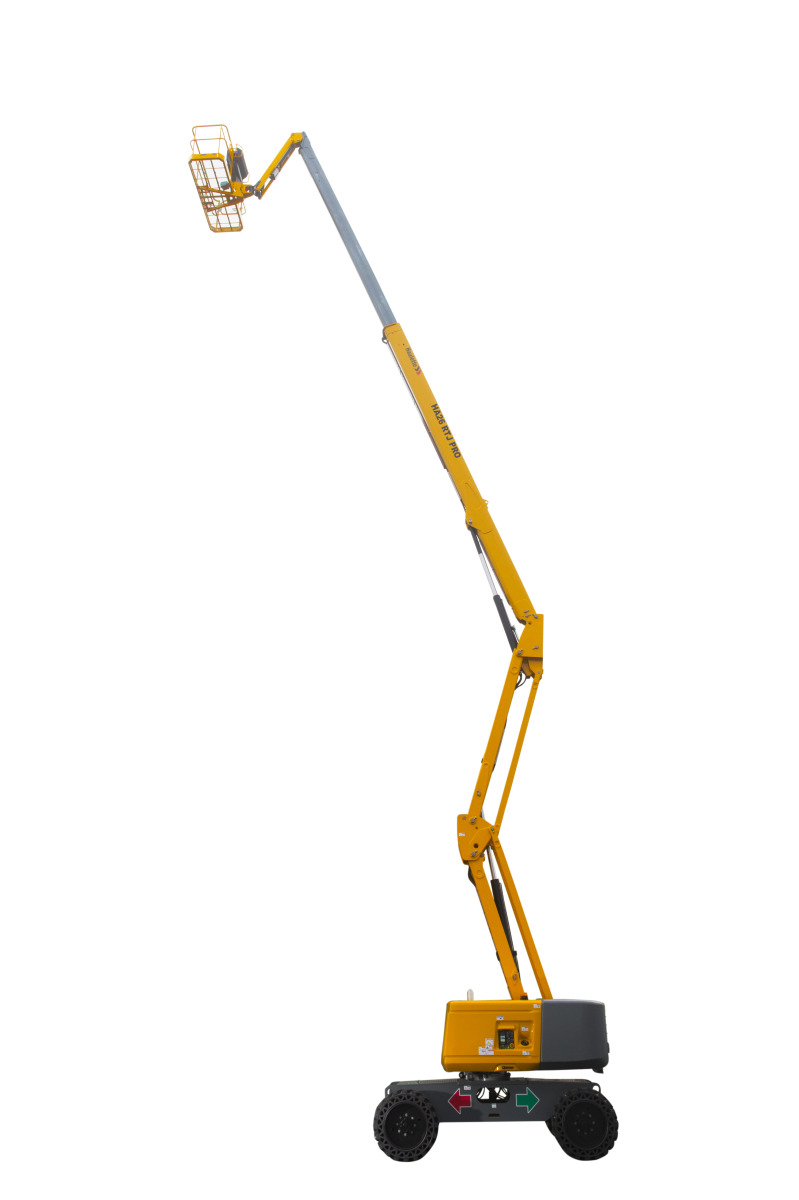

Articulating Booms HA26 RTJ PRO

Our RTJ range of articulating booms is designed to work in the most restrictive environments and tackle the most demanding projects. Haulotte's expertise ensures safe working on all RTJ articulating booms, up to 43m. HA26 RTJ PRO is equiped with an oscillating axle which adjusts the position of the axle to adapt to the terrain and keep the wheels in contact with the ground. In 4-wheel steering mode, the turning radius is shortened, enabling you to maneuver in tight or congested spaces.

Product characteristics

Outdoor

Outdoor

Uneven ground

Uneven ground

Diesel

Diesel

Application fields

Finishings

Finishings

Building works

Building works

Landscaping

Landscaping

Maintenance & renovation

Maintenance & renovation

Sporting & other events

Sporting & other events

HA26 RTJ PRO

Presentation

  • Performance & productivity
  • Safety and comfort
  • Minimized Total Cost of Ownership

Specifications

Performance & productivity

Performance & productivity

  • Very good working envelope
  • Vertical arm rise - basket remains parallel to wall
  • Outstanding RT capabilities
  • Basket load capacity 250 kg
  • Dual load 250 - 350 kg (option)
Safety and comfort

Safety and comfort

  • Quick, proportional and simultaneous movements
  • Haulotte Activ'Lighting System safe load
  • Haulotte Activ'Shield Bar 2.0
Minimized Total Cost of Ownership

Minimized Total Cost of Ownership

  • Haulotte Activ'Screen (on board diagnostic)
  • Haulotte Stop Emission System automatically turns the engine off & on
  • Easy access to all components
  • Large modular basket, quick and easy to repair

Working height 26.4 m
Platform height 24.4 m
Horizontal outreach 17.5 m
Up and over clearance 9.3 m
Lift capacity 250 kg (2 pers.) - option 350 kg
Platform size 2.44 x 0.91 m
Length - stowed 11.8 m
Width 2.48 m
Height - stowed 2.97 m
Storage / transport length 9.4 m
Storage / transport height 2.98 m
Vertical jib rotation 133° (- 65° / + 68°)
Platform rotation 180 °
Turntable rotation 360° continuous
Tailswing 0.76 m
Wheelbase 2.8 m
Ground clearance 48 cm
Tilt 4 °
Drive speed 5 km/h
Maximum wind speed rating 45 km/h
Gradeability 45 %
Tires - solid rough terrain 1025 x 365 mm
Turning radius - outside 4.35 m
Power source Kohler 36.5 kW (Stage 5), Perkins 36.5 kW (LRC), Kubota 36.5 kW (China 4)
Weight 15 500 kg
Hydraulic system capacity 140 l
Fuel tank capacity 80 l
Ground clearance - mini 0 m
Ground clearance - maxi 0 m

  • Haulotte Activ'Screen: embedded diagnostic system on lower control box, with color screen
  • Haulotte Activ'Shield Bar 2.0
  • Haulotte Activ'Lighting System, safe load
  • Haulotte Stop Emission System: automatic engine stop system
  • Universal telematics plug
  • 4 wheel drive, 4 wheel steer
  • Front oscillating axle
  • 4 simultaneous movements
  • Automatic differential wheel lock
  • Upper control box cover
  • Tool tray
  • Large modular Haulotte basket 2.44 m x 0.91m
  • Drop bar entry gate
  • AC power to platform (110 / 230 V)
  • Swing out engine tray
  • Sound and light alarm for tilt and load
  • Rotating beacon
  • Travel alarm
  • Electric pump system and emergency descent
  • 12 V battery / electrical control system
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper control box), fuel gauge (lower control box)

  • Non marking tyres
  • Dual load capacity 250 / 350 kg (restricted)
  • 60 km/h wind speed
  • Power to platform (female plug in the basket)
  • Air-line to platform
  • Lateral swing door entry gate
  • Hydraulic generator 3.5 kW or 6.5 kW
  • Biodegradable hydraulic oil
  • Hydraulic oil cooler
  • Cold weather kit - 20° / Arctic weather kit - 25°C
  • Pipe cradle pack
  • Glazier pack
  • Working light
  • Battery circuit breaker
