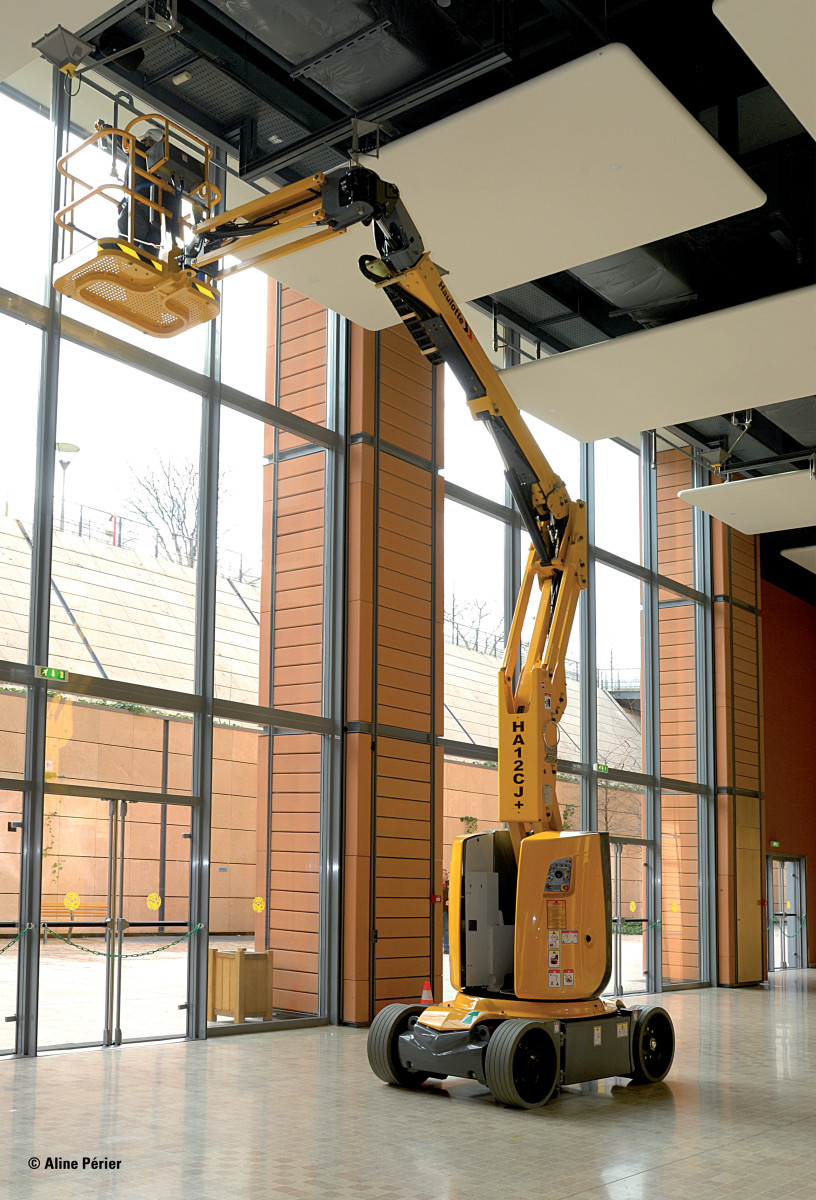

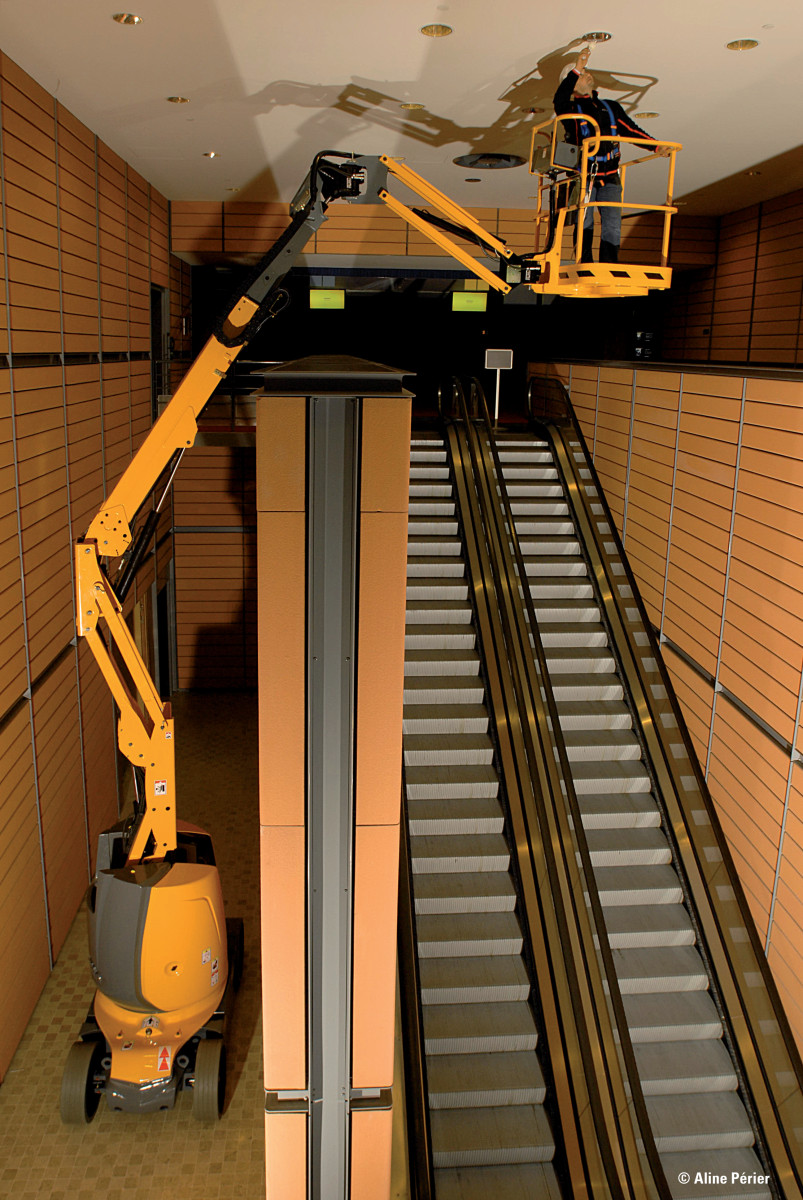

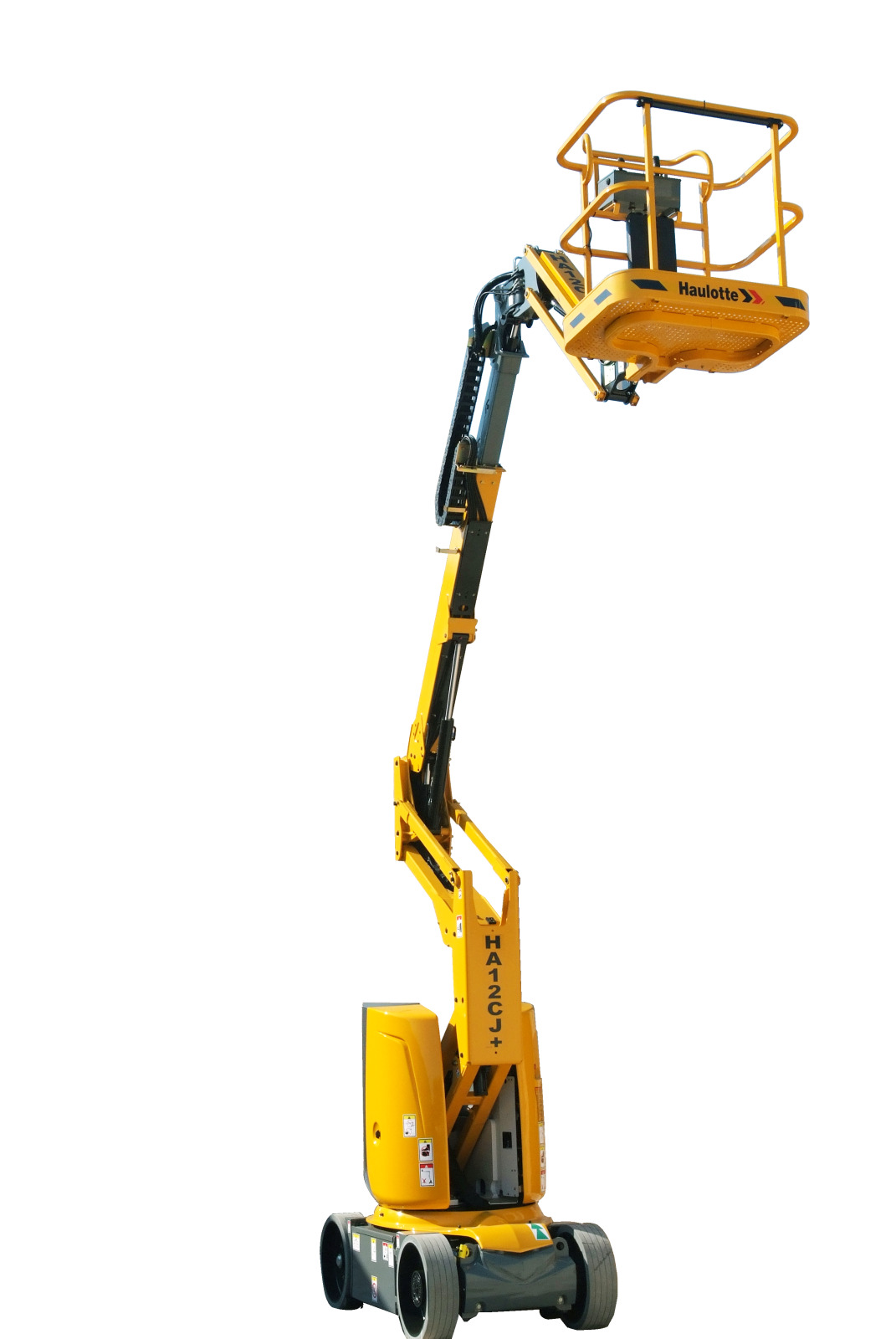

Electric Articulating BoomsHA12 CJ+

  • Electric Articulating Booms
  • Electric
  • Flat ground
  • Indoor and outdoor use
  • Logistic / Retail / Industry
  • Finishings
  • Maintenance & restoration
  • Sporting & other events
  • Excellent manoeuvrability in the tightest spaces
  • Drive and turntable rotation
  • Tight turning radius
  • Zero tailswing
  • Compact stowed height passes through standard doorways
  • 1.20m width
  • Optimized productivity
  • Proportional and simultaneous movements
  • Suitable for inside and outside use
  • Long working cycles

Working height 11.68 m
Platform height 9.68 m
Horizontal outreach 7.22 m
Up and over clearance 4.74 m
Lift capacity - inside 230 kg (2 pers.)
Platform size 1.14 x 0.8 m
Length 5.64 m
Width 1.2 m
Height - stowed 1.99 m
Vertical jib rotation 132.2° (+63.5/-68.7)
Platform rotation 180° (-90/+90)
Turntable rotation 355 °
Wheelbase 1.65 m
Ground clearance 10.7 cm
Tilt 3 °
Proportional drive speed 0.68 - 6 km/h
Gradeability 25 %
Turning radius - outside 3.65 m
Tyres - non marking 598x190
Energy 48V - 320 Ah (C5)
Weight 7 110 kg
Horizontal jib rotation 180° (-90/+90)
Length – transport 4.2 m
Height - transport 2.6 m
Tailswing 0 cm
Hydraulic system capacity 13.5 l
Lift capacity - outside 230 kg (2 pers.)
Lift capacity 0
Vertical jib rotation 0 °
Length - storage /transport 0 m
Height - storage / transport 0 m
Tyres - solid rough terrain 0
Batteries 0
Range extender 0
Maximum wind speed rating 45 km/h
  • 2 wheel drive
  • 2 wheel steer
  • Solid non-marking tyres
  • Ergonomic control panels
  • Mechanical turret slewing lock
  • Automatic platform levelling
  • Load Management System in the platform
  • Tilt sensor
  • Horn
  • Hourmeter
  • Emergency hand pump
  • On board battery charger 48V - 50A
  • Deep cycle batteries
  • Battery charge indicators on both control panels
  • Towing hooks and lifting eyes
  • Electric socket in the platform
  • Air line to platform
  • Self-closing swing door
  • Circuit-breaker
  • Traction batteries
  • Telematics ready
  • Fluorescent tube caddy
  • Orange safety cones holder
  • Flashing light
  • Working light
