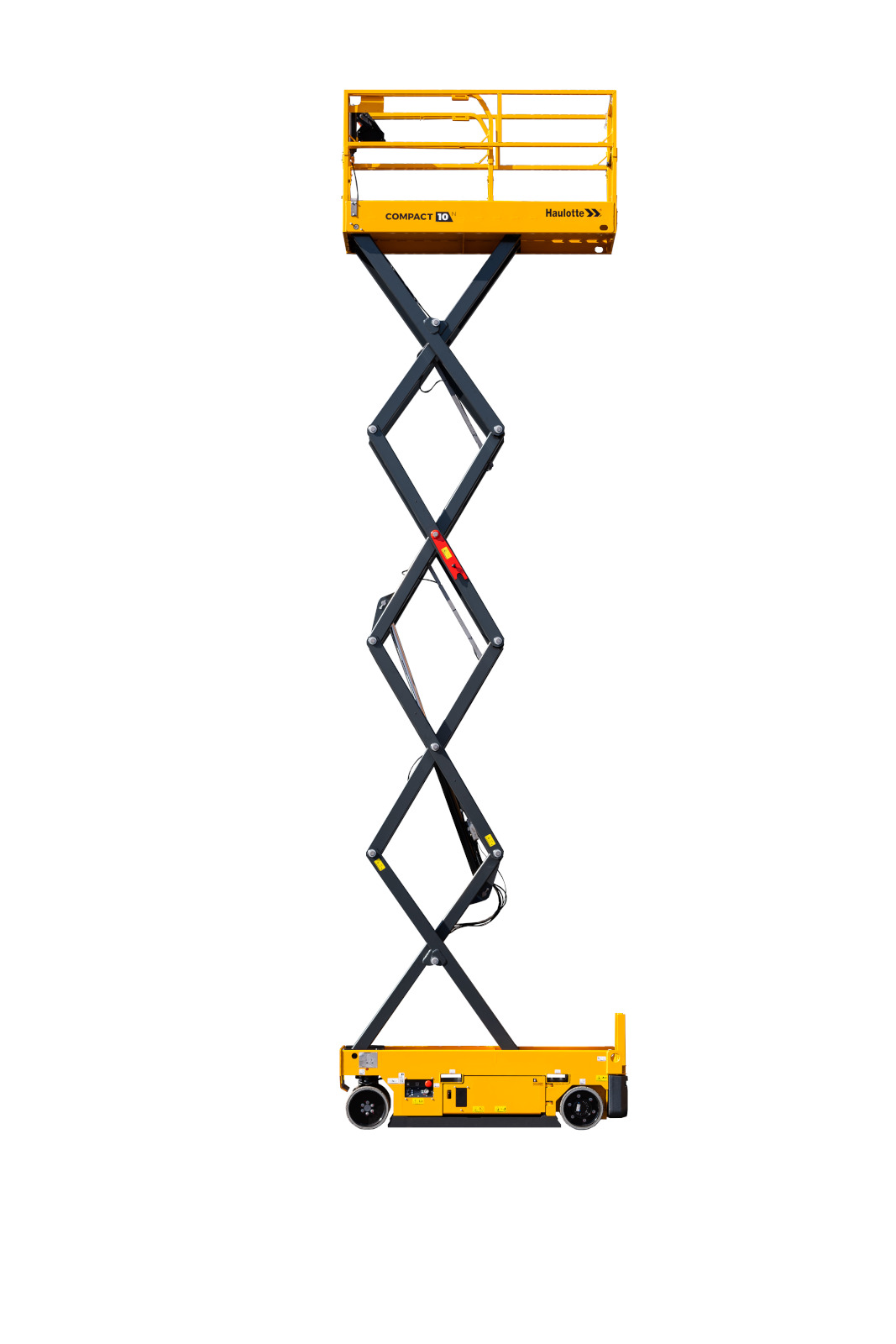

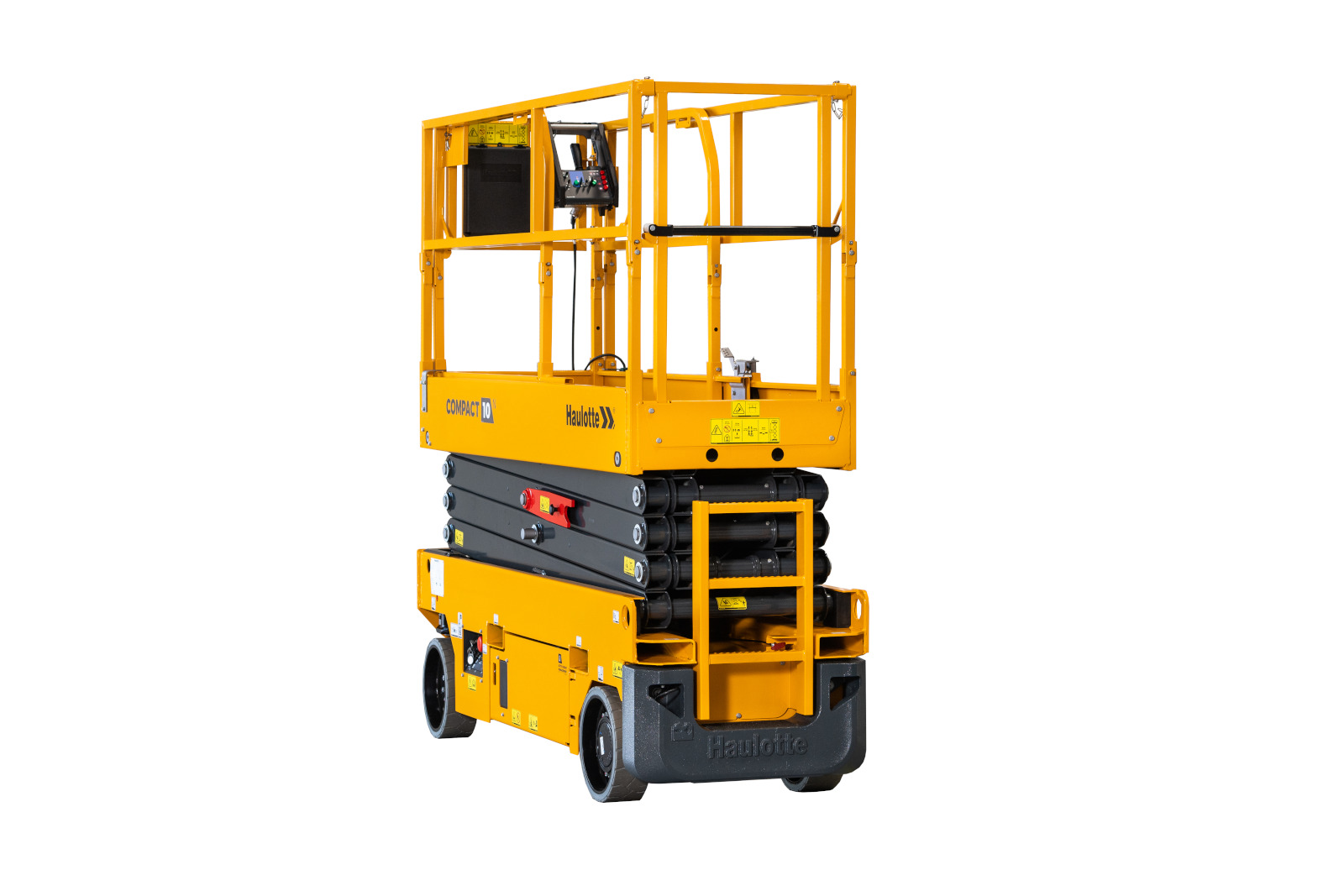

Scissor lifts Compact 10 N

COMPACT scissor lifts deliver unparalleled strength and adapt perfectly to the constraints of your worksites. Each subassembly is optimized, from the chassis to the platform and scissor arms. COMPACT scissor platforms guarantee high productivity and optimum uptime. Models with a narrow chassis (N) are more maneuverable.

Product characteristics

Indoor

Indoor

5-year warranty

5-year warranty

Even ground

Even ground

Electric

Electric

Application fields

Finishings

Finishings

Logistic / Retail / Industry

Logistic / Retail / Industry

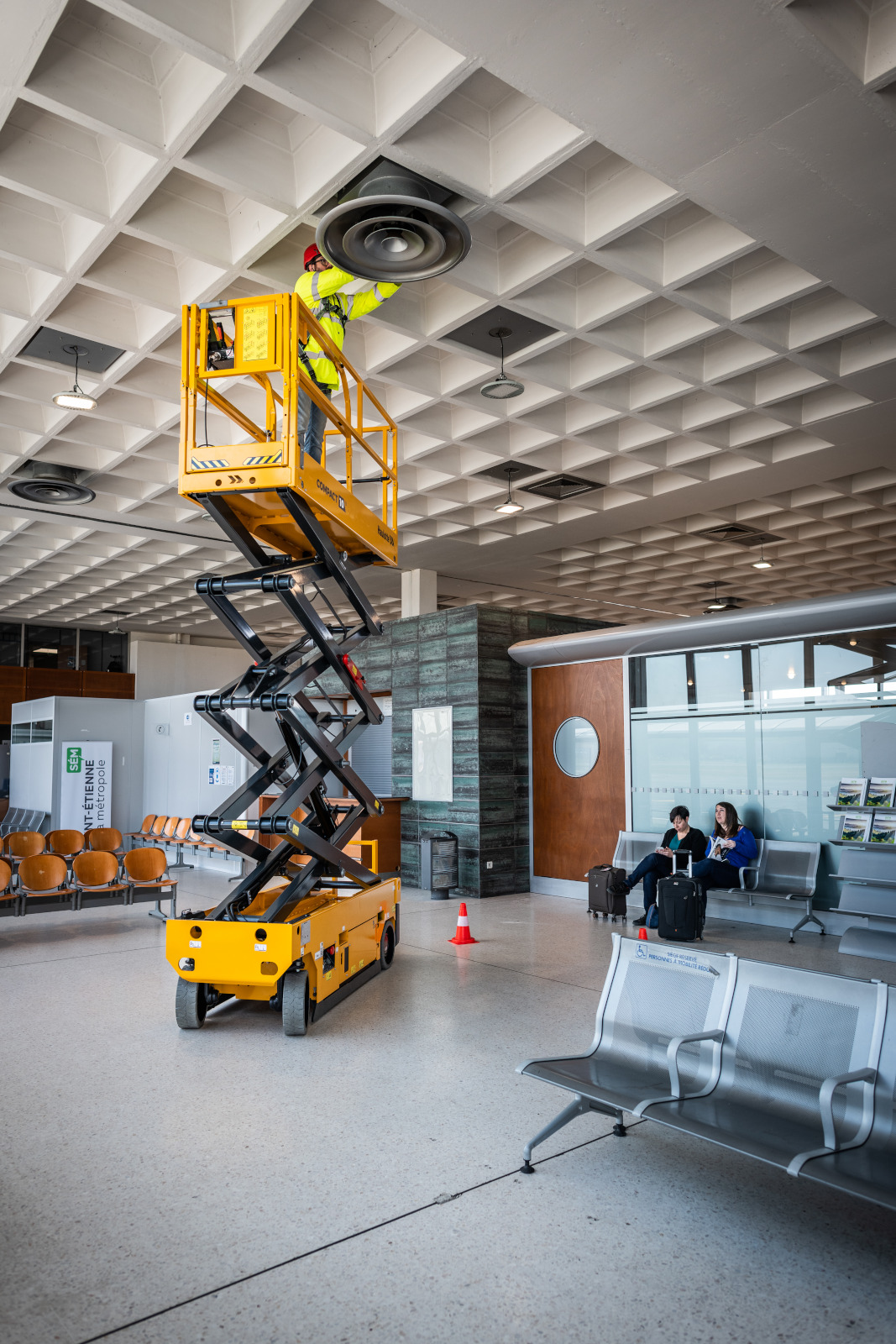

Maintenance & renovation

Maintenance & renovation

Sporting & other events

Sporting & other events

Compact 10 N

Presentation

  • Smart rugged design
  • Maximized potential
  • Unique user experience
  • Unbeatable serviceability

Specifications

Smart rugged design

Smart rugged design

  • Impact-proof counterweight with integrated ladder protection, AC motors and charger plug
  • Reinforced guardrails with additional vertical stiles for maximum durability
Maximized potential

Maximized potential

  • Access all worksites: foldable guardrails, lateral & longitudinal forklift pockets
  • IN/OUT usage with full height driving and no load restriction
Unique user experience

Unique user experience

  • Proportional movements for precise driving (AC motors)
  • Ergonomic upper control box with grab handle & speed selector
Unbeatable serviceability

Unbeatable serviceability

  • Haulotte Activ'Energy Management for battery care
  • On-board & remote settings and diagnostic tools with Haulotte Diag, Haulotte Activ’Screen and Sherpal telematics solution

Working height 9.8 m
Platform height 7.8 m
Max. drive working height 7.8 m
Lift capacity - inside 250 kg (2 pers.)
Lift capacity - outside NA
Lift capacity on the extension 120 kg
Platform length 2.4 m
Platform length - extended 3.32 m
Length - extension 0.92 m
Platform width - outside 0.8 m
Height - stowed 2.35 m
Height - guardrails lowered 1.94 m
Overall width 0.81 m
Length 2.5 m
Wheelbase 1.86 m
Ground clearance - center 12.5 cm
Ground clearance - deployed potholes 2 cm
Drive speed 0.7 / 1.5 / 4.2 km/h
Gradeability 25 %
Tilt (longitudinal / lateral) 3.5° / 1.5°
Turning radius - outside 2.05 m
Non-marking tyres 15 x 5
Batteries 24 V - 225 Ah (C20)
Hydraulic system capacity 10 l
Weight 2 160 kg
Compact 10 N
Compact 10 N
Compact 10 N

  • Haulotte Activ'Energy Management: Smart CAN charger
  • 27A multivoltage charger
  • Battery access with swing out tray
  • Battery level indicator
  • Haulotte Activ’Screen (battery charge information, hourmeter, service alerts & failures in code or in text...)
  • Lateral & longitudinal forklift pockets
  • Foldable guardrails
  • Front platform extension
  • AC motors
  • Mobile upper control box
  • 2 drive speeds selector
  • Manual emergency descent
  • Mobile pothole guards
  • MyHaulotte multi-services portal access
  • 2 front steering wheels, 2 rear drive wheels
  • Solid non marking tires
  • Motion alarm
  • Electric brake release system
  • Drop bar entry

  • Haulotte Activ'Energy Management: automatic or manual battery water filling systems
  • AGM maintenance-free batteries
  • Secondary guarding system
  • Telematics solutions
  • Pipe cradle
  • Panel carrier
  • Swing gate entry
  • Basket plug (110 / 230 V)
  • Additional protection of upper & lower control box
  • Working light
  • Flashing light (single, dual or 360°)
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
