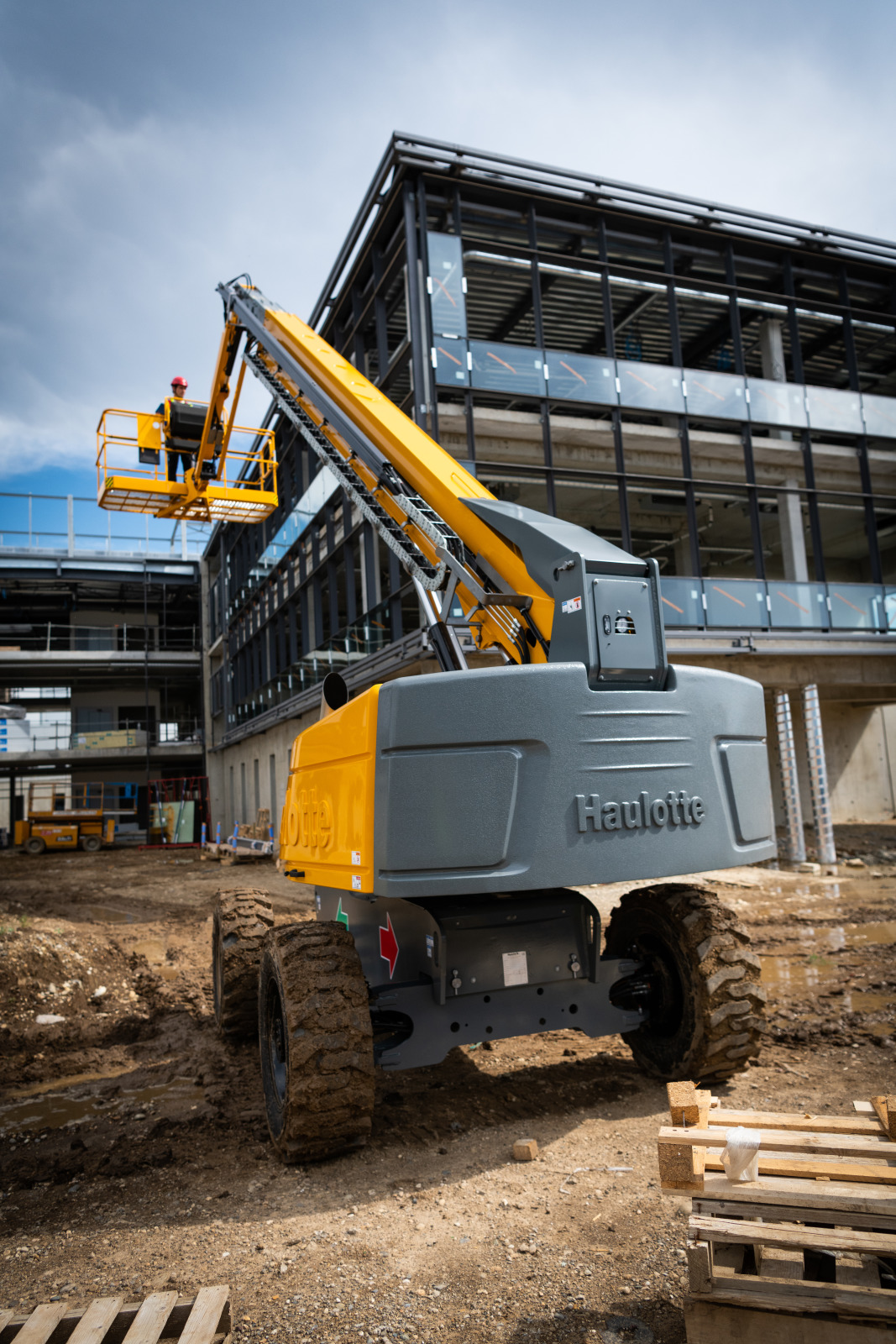

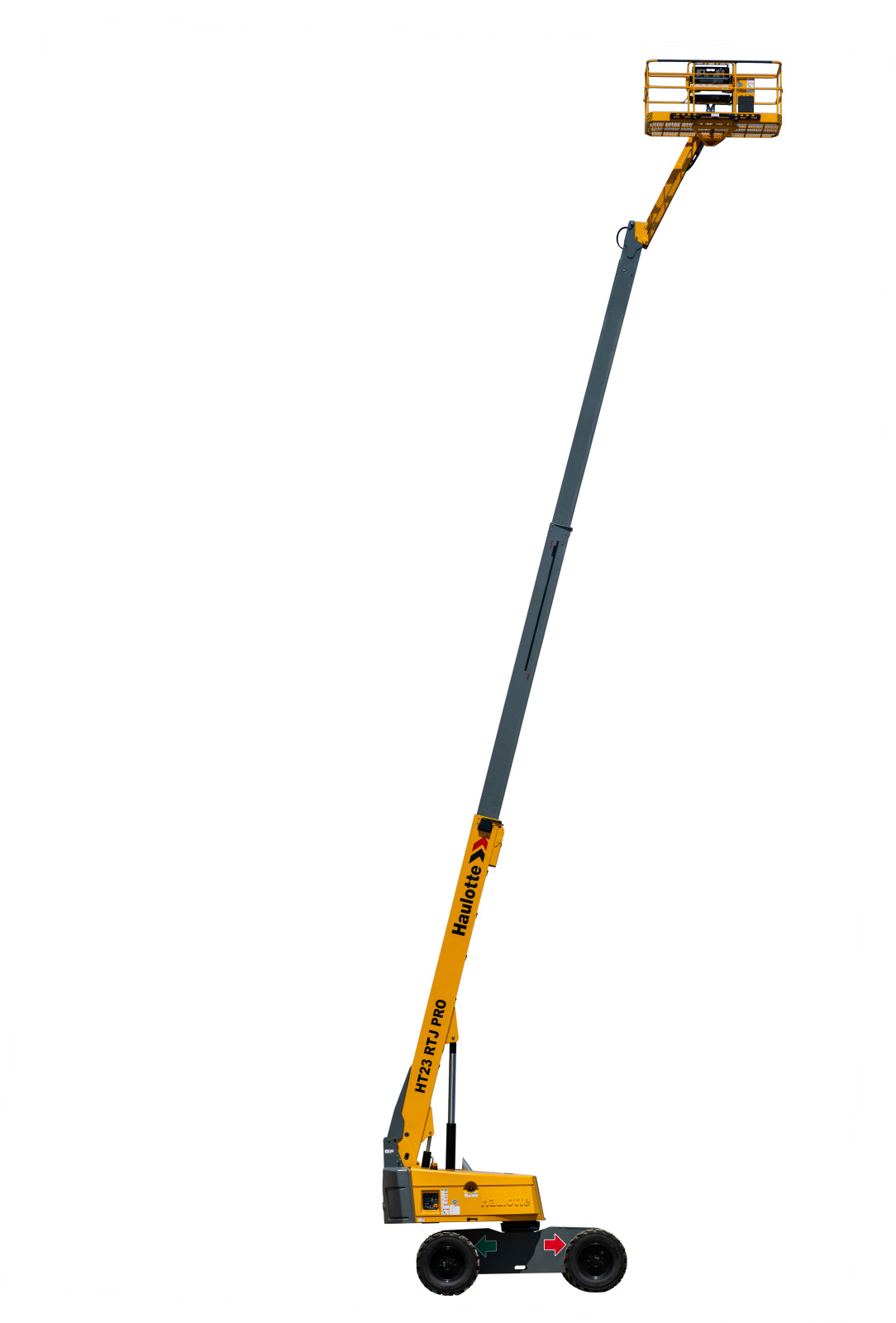

Telescopic Booms HT23 RTJ PRO

Our HT23 RTJ PRO telescopic boom is designed to work in the most restrictive environments and tackle the most demanding projects. HT23 RTJ PRO incorporates our latest innovations to offer you the safest solutions on the market for working at heights, increase the productivity of your construction sites and optimize the uptime of your machines. HT23 RTJ PRO is equiped with an oscillating axle which adjusts the position of the axle to adapt to the terrain and keep the wheels in contact with the ground. In 4-wheel steering mode, the turning radius is shortened, enabling you to maneuver in tight or congested spaces."

Product characteristics

Outdoor

Outdoor

Uneven ground

Uneven ground

Diesel

Diesel

Application fields

Finishing

Finishing

Building works

Building works

Landscaping

Landscaping

Maintenance & renovation

Maintenance & renovation

Sporting & other events

Sporting & other events

HT23 RTJ PRO

Presentation

  • Outstanding performance & productivity
  • Best comfort and safety feeling
  • Minimized Total Cost of Ownership

Specifications

Outstanding performance & productivity

Outstanding performance & productivity

  • Very good working envelope
  • Basket load capacity 230 kg
  • Dual load 230-450 kg (option)
Best comfort and safety feeling

Best comfort and safety feeling

  • Haulotte Activ'Shield Bar 2.0 (standard on PRO)
  • Haulotte Activ'Lighting System for safe loading/unloading in conditions of low visibility (standard on PRO)
  • Quick, proportional and simultaneous movements
  • Rigid boom
Minimized Total Cost of Ownership

Minimized Total Cost of Ownership

  • Haulotte Activ'Screen diagnostic display for onboard fault & service alerts
  • Haulotte Stop Emission System automatically turns the engine off & on
  • Easy access to all components
  • Exclusive modular basket, quick and easy to repair

Working height 22.5 m
Platform height 20.5 m
Horizontal outreach 18.3 m
Below ground reach 4 m
Lift capacity 230 kg (2 pers.) - option : 450 kg (3 pers.)
Platform size 2.44 x 0.91 m
Length - stowed 10.4 m
Storage / transport length 7.8 m
Overall width 2.47 m
Height - stowed 2.7 m
Storage / transport height 3.3 m
Vertical jib rotation 133° (+68/-65)
Platform rotation 180° (+90/-90)
Boom rotation angle 90° (+75/-15)
Turntable rotation 360 ° continuous
Tailswing 109 cm
Wheelbase 2.5 m
Ground clearance 34 cm
Tilt
Drive speed 0.5 - 6.5 km/h
Maximum wind speed rating 45 km/h
Gradeability 40 %
Turning radius - outside 3.4 m
Tyres - foam-filled 385/65 - 22.5
Fuel tank 166 l
Engine Kubota 37 kW, (stage 5) ; Kubota 36.5kW (LRC & China 4)
Weight 13 400 kg

  • Haulotte Activ'Lighting System (standard on PRO)
  • Haulotte Activ'Shield Bar (standard on PRO)
  • Haulotte Stop Emission System
  • Haulotte Activ’Screen onboard colored monitor screen and diagnostic system
  • Universal telematics plug
  • 4 wheel drive / 2 (O) or 4 (PRO) wheel steer
  • Front oscillating axle increases stability on uneven ground
  • Proportional controls enhance comfort and safety
  • 4 simultaneous movements for maximum productivity
  • Automatic differential wheel lock increase rough terrain capacity
  • Upper control box protection cover and tool tray in ultra-solid composite
  • Large modular basket 2.44 x 0.91 m, drop entry gate
  • Basket limitation +/- 10°
  • Prepared for power to platform 110 / 230V
  • Swing out engine tray for ease of maintenance
  • Sound and light alarm for tilt and load
  • Rotating beacon
  • Driving alarm
  • Hour meter
  • Electric pump system and emergency descent
  • 12 V battery
  • Engine pre-heater with light indicator
  • Low fuel level indicator (upper control box)

  • Haulotte Activ'Lighting System (O model)
  • Haulotte Activ'Shield Bar 2.0 (O model)
  • Dual load capacity 230 / 450 kg (2-3 persons)
  • Narrow modular platform 1.83 m x 0.8 m
  • Power to platform (Female plug in the basket with or without circuit-breaker 30mA)
  • Air line to platform
  • Lateral swing door entry gate
  • 3.5 kW, 6,5 kW, 12 kW (Only NA) hydraulic generator
  • Biodegradable hydraulic oil
  • 60km/h wind speed
  • Warm environment package
  • Cold weather package / Kit Arctic
  • Pipe cradle pack
  • Glazier pack
  • Working lights
